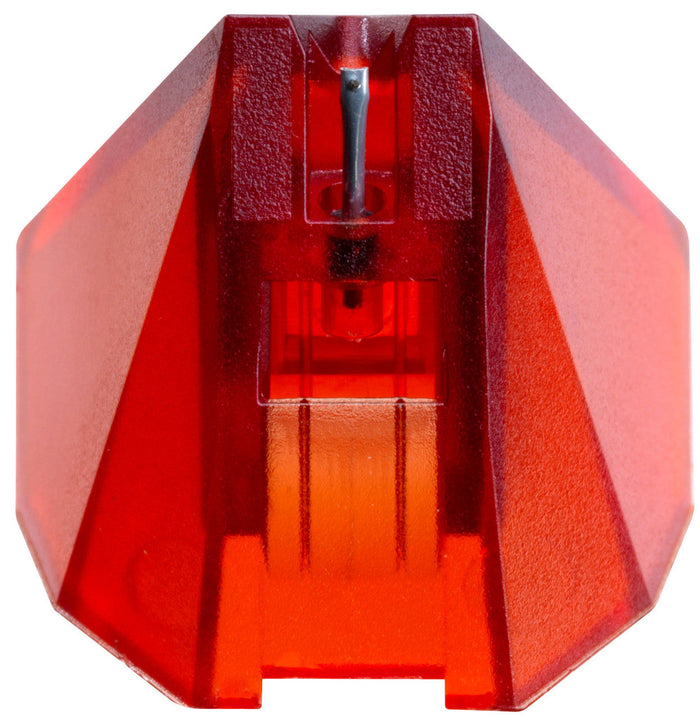

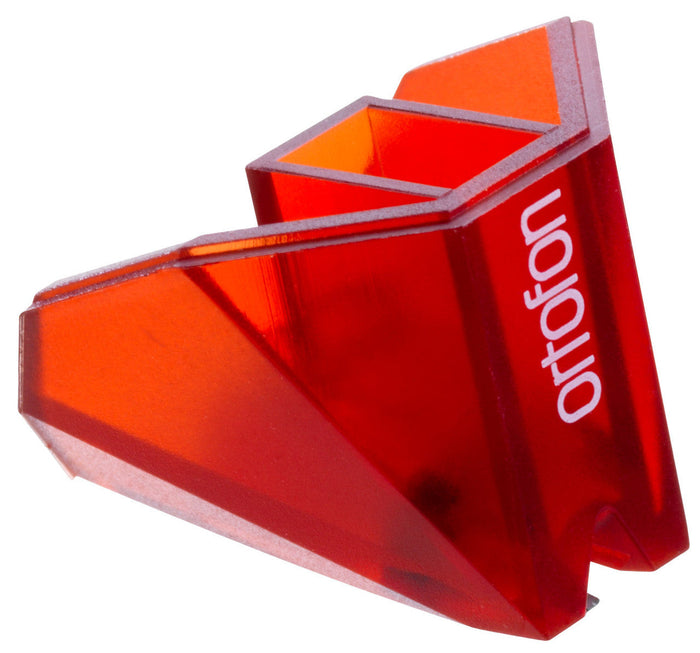

Ortofon Stylus for 2M Red phono cartridge

Ortofon Stylus for 2M Red phono cartridge

The Ortofon Stylus for 2M Red phono cartridge is a high-quality replacement stylus with impressive specifications. It offers a frequency response of 20 Hz to 20,000 Hz with a deviation of +3 / -1 dB, ensuring accurate and balanced sound reproduction. The tracking ability at 315 Hz, at the recommended tracking force, is 70 µm, allowing for precise tracking of the grooves on your records. The stylus has a dynamic lateral compliance of 20 µm/mN, ensuring optimal performance and minimal distortion. With an elliptical stylus tip radius of 8/18 µm, it delivers detailed and accurate playback. The recommended tracking force is 1.8 g (18 mN), providing the ideal balance between tracking stability and audio fidelity. The stylus comes in a distinctive red color, adding a touch of style to your turntable setup.

Technical specifications

Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force *) - 70 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Equivalent stylus tip mass - 0.5 mg
Tracking force range - 1.6-2.0 g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20°
*) Typical value
