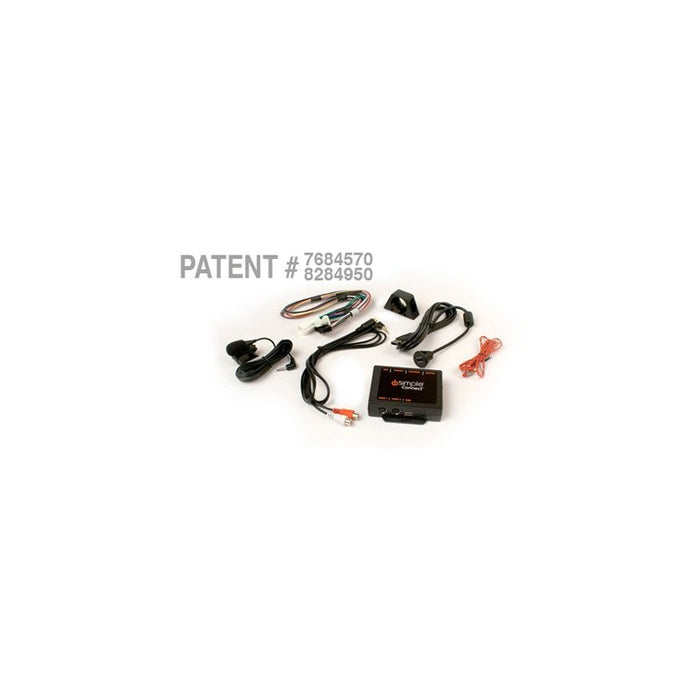

Premium Factory Radio Interface for iPod, iPhone or iPad, Android and Other Smartphones (Includes Connect Interface & PGHTY1 Harness)
CONNECT, your phone, your car - wirelessly.
Upgrade your car with today’s latest technology and best possible sound quality with this premium integration solution.
Enjoy your favorite songs, discover new content with internet radio, and safely manage phone calls, hands-free with a touch of a button. One discrete module hidden in your vehicle seamlessly connects your devices while providing control through your factory radio and steering wheel controls. The Connect’s USB port provides charging and music playback from your smartphone or music playback from a portable USB hard drive or thumb drive.
Full control for iPhone: Wirelessly (Bluetooth) or Wired (using customer’s Apple USB cable)
Basic control for Android: Wirelessly (Bluetooth)
USB connection for charging and control of smartphones, tablets, and media players
Device browsing and control by wired or Bluetooth connection
USB Thumb-drive support: upto 32GB and upto 8,000 MP3 files
2.1 Amp USB connection for charging of smartphones, tablets, and media players
Android audio streaming and wireless track control through Bluetooth connection
Built-in Bluetooth for hands-free calling (HFP) and audio streaming (A2DP)
Song text (metadata) on factory radio
Auxiliary audio input (3.5mm or RCA)
Wireless device control using audio/video remote control profile (AVRCP)
Vehicle-specific harnesses for plug and play installation
Expandable:
Connect an ISSR11 cable and add an SCC1 Satellite tuner
Connect an ISSR12 cable and add an SXV100 or SXV200* Satellite tuner
(Sat tuners, and ISSR11, and ISSR12 cables all sold separately.)
Compatibility Notes
If Toyota factory radio has satellite tuner built into the radio it does NOT support the Dualink/Gateway/Car Connect. This can be determined by the presence of a satellite radio antenna plugged directly into the radio
Vehicle MUST be either equipped with, or have the ability to support Satellite Radio
Bluetooth device MUST support hands free profile (HFP) in order to be compatible with the Connect. Please refer to your devices specifications to see if this profile is supported.
Radio must have an "AM-SAT" or "SAT" button to be compatible. 2012+ vehicles equipped with a non-navigation touchscreen radio are also compatible.
2012+ Camry & Prius equipped with factory navigation radios are not compatible
Pre 2010 vehicles that are equipped with factory satellite radio must disconnect the factory satellite radio tuner at the tuner location in order for the Connect to function properly.
Not compatible in 2009+ model vehicles that have an "XM" logo printed on the face of the radio. These radios have an internal satellite tuner and are not compatible. All other radios without the logo that have an "AM/SAT" or "SAT" button are compatible.
If using with the HDRT HD Radio tuner:Radios with a diversity antenna will need the PGHTY1HD harness in order for the HD tuner to work correctly.
When using the ISSR12 to add XM/Sirius, only the SXV100 and SXV200 tuners are supported(Connect is not compatible with the SXV300)
Vehicle Specific Toyota/Scion/Lexus Notes
Scion
Not compatible in vehicles equipped with the OEM Pioneer radio with the OEL display
Toyota
2009+ Toyota Prius:The radio in these vehicles may be equipped with an internal satellite tuner with no distinguishing marks on the face of the radio. If the radio has a yellow satellite antenna plugged into the back, the satellite tuner is internal and the Connect is not compatible.
2012+ Toyota Tundra:Vehicles equipped with factory navigation radios cannot use the ISTY651 to add aftermarket satellite radio
2009+ Toyota Venza:Only compatible in vehicles equipped with navigation
2011 Toyota Sienna:Only compatible in vehicles equipped with navigation
2010+ 4Runner:Only compatible in vehicles equipped with navigation
Year(s)
Make
Model
Trim Level
Additional Info
2004-2006
LEXUS
ES 300
ALL TRIM LEVELS
—
2004-2006
LEXUS
ES 330
ALL TRIM LEVELS
—
2007-2009
LEXUS
ES 350
ALL TRIM LEVELS
—
2006
LEXUS
GS 300
ALL TRIM LEVELS
—
2007-2009
LEXUS
GS 350
ALL TRIM LEVELS
—
2006-2007
LEXUS
GS 430
ALL TRIM LEVELS
—
2007-2008
LEXUS
GS 450H
ALL TRIM LEVELS
—
2008
LEXUS
GS 460
ALL TRIM LEVELS
—
2005-2009
LEXUS
GX 470
ALL TRIM LEVELS
—
2006-2009
LEXUS
IS 250
ALL TRIM LEVELS
—
2006-2009
LEXUS
IS 350
ALL TRIM LEVELS
—
2008-2009
LEXUS
IS F
ALL TRIM LEVELS
—
2005-2006
LEXUS
LS 430
ALL TRIM LEVELS
—
2007-2009
LEXUS
LS 460
ALL TRIM LEVELS
—
2007-2008
LEXUS
LS 600H
ALL TRIM LEVELS
—
2004-2007
LEXUS
LX 470
ALL TRIM LEVELS
—
2004-2007
LEXUS
RX 330
ALL TRIM LEVELS
—
2007-2009
LEXUS
RX 350
ALL TRIM LEVELS
—
2007-2009
LEXUS
RX 400H
ALL TRIM LEVELS
—
2005-2009
SCION
TC
ALL TRIM LEVELS
—
2004-2006
SCION
XA
ALL TRIM LEVELS
—
2004-2008
SCION
XB
ALL TRIM LEVELS
—
2008
SCION
XD
ALL TRIM LEVELS
—
2007-2008, 2010-2013
TOYOTA
4RUNNER
ALL TRIM LEVELS
—
2007-2012
TOYOTA
AVALON
ALL TRIM LEVELS
—
2007-2012
TOYOTA
CAMRY
ALL TRIM LEVELS
—
2009-2013
TOYOTA
COROLLA
ALL TRIM LEVELS
—
2007-2010
TOYOTA
FJ CRUISER
ALL TRIM LEVELS
—
2007-2013
TOYOTA
HIGHLANDER
ALL TRIM LEVELS
—
2007
TOYOTA
LAND CRUISER
ALL TRIM LEVELS
—
2007-2013
TOYOTA
MATRIX
ALL TRIM LEVELS
—
2007-2013
TOYOTA
PRIUS
ALL TRIM LEVELS
—
2007-2012
TOYOTA
RAV4
ALL TRIM LEVELS
—
2007-2013
TOYOTA
SEQUOIA
ALL TRIM LEVELS
—
2007-2011
TOYOTA
SIENNA
ALL TRIM LEVELS
—
2007
TOYOTA
SOLARA
ALL TRIM LEVELS
—
2007-2013
TOYOTA
TACOMA
ALL TRIM LEVELS
—
2007-2013
TOYOTA
TUNDRA
ALL TRIM LEVELS
—
2009-2013
TOYOTA
VENZA
ALL TRIM LEVELS
—
2009-2013
TOYOTA
YARIS
ALL TRIM LEVELS
—
Product Revision History
Current Revision #:1.5.192a.46a Description:Fixes intermittent audio issue seen when used with SXV200 tuner Release Date:05-05-14
Revision #:1.5.187a.45d Description:Improves Bluetooth HFP audio, fixes Satellite Radio bleedthrough, improves general functionality.Release Date:03-22-13
