ISGM571 GateWay Kit for Select 29-Bit LAN General Motors Vehicles - DISCONTINUED

DISCONTINUED

Compatibile with iPod, iPhone, iPad with 30-Pin connector only.

The ultimate car integration kit for your iPod or iPhone. Each vehicle-specific GateWay kit provides a seamless connection between your iPod or iPhone and the factory-installed, satellite-ready radios in many 2003-2011 cars, trucks and SUVs.

Include keeping the factory radio intact - no need to get a new radio installed, digital quality music from your iPod or iPhone, playlist and library browsing through your standard radio controls, Song, Artist and Album information on your radio display, battery charging on all dockable iPod or iPhone models, and secondary input for use with other portable audio devices.

Pod/iPhone and Auxiliary Audio Input Interface with HD Radio Satellite Radio & Bluetooth Options for Select 29-bit LAN General Motors Vehicles (Includes PXAMG GateWay Interface & PGHGM1 Harness)

• Direct connection provides excellent digital quality sound
• Use the OEM radio controls to browse the iPod or iPhone
• Vehicle MUST be either equipped with, or have the ability to support Satellite Radio
• Upgradable with Sirius Satellite Radio
• Upgradable with HD Radio
• Upgradable with Bluetooth
• Song information displayed on factory radio
• Battery charging for most models of iPod or iPhone
• HD Radio support requires the purchase of the HDRT (sold separately)
• Radio must have a "Band" or "XM" button to be compatible
• Secondary audio input for use with other audio sources
• Vehicle-specific harnesses for plug and play installation
• Not compatible in vehicles equipped with "Monsoon" system or any other "signal sensing" amplifier.
• When using the PGHGM5 harness: Some radios may have an inactive satellite radio port if not equipped with a factory satellite radio tuner. -Please see a dealer for activation of this port to enable the interface

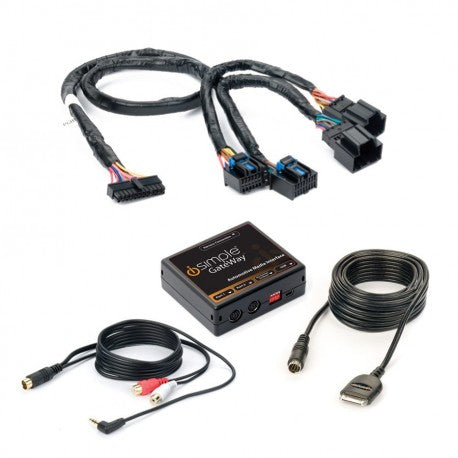

• Kits include the module and vehicle-specific harness
• Plug and play installation maintains factory wiring integrity
